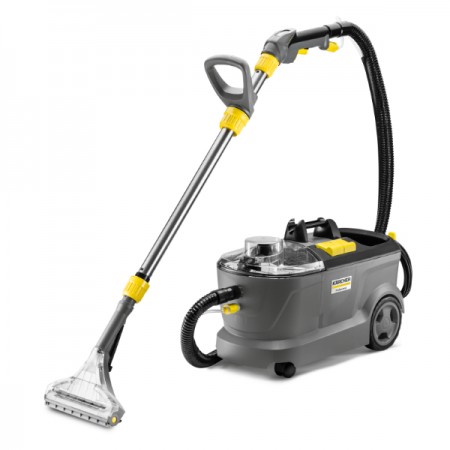

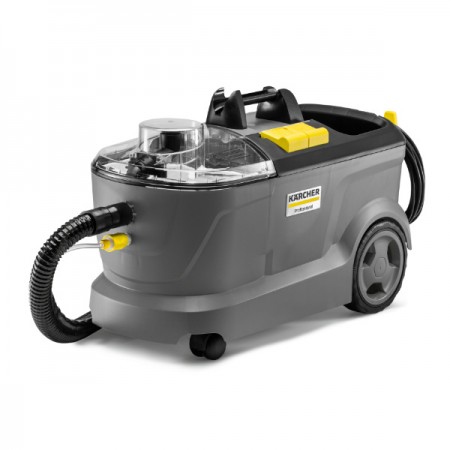

Karcher Puzzi 10/1 Carpet & Upholstery Cleaner
Introducing the Karcher Puzzi 10/1 Carpet & Upholstery Cleaner, the popular spray extraction machine designed to deliver exceptional cleaning results for carpets and upholstery. This powerful cleaner uses the proven spray-extraction method to deep clean carpets, leaving minimal residual moisture. This means that carpets and upholstery are left almost completely dry, reducing the risk of resoiling and enabling cleaned areas to be used again very quickly.
The Puzzi 10/1 features a revolutionary flexible suction tool with a rotating plastic lip, ensuring optimum contact regardless of the angle of the floor tool. This innovative design dramatically improves ease of use and cleaning results. The machine is equipped with a 10-litre fresh water tank and a 9-litre dirty water tank, making it perfect for both small and large cleaning tasks.
Elevate your cleaning game with the Karcher Puzzi 10/1 Carpet & Upholstery Cleaner – where innovation meets performance.
Product Key Features
- Spray Extraction Method: Deep cleans carpets and upholstery with minimal residual moisture
- Flexible Suction Tool: Ensures optimum contact and improved cleaning results
- Large Water Tanks: 10-litre fresh water tank and 9-litre dirty water tank for extended cleaning sessions
- Ergonomic Design: Easy to operate with large push-buttons and a comfortable handle
- Fast Drying Times: Carpets and upholstery are ready for use quickly after cleaning
Accessories Included

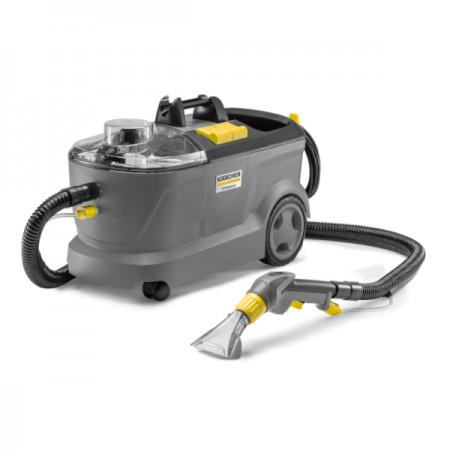

- 110 mm Hand/Upholstery Nozzle
- 240 mm Flexible Carpet Nozzle
- 0.7 Metre Aluminium Spray/Extraction Tube
- Spray/Extraction Tube Adjustable D-Handle
- Spray/Suction Gun
- 2.5 Metre Spray/Suction Hose
- Removable 2-in-1 Container

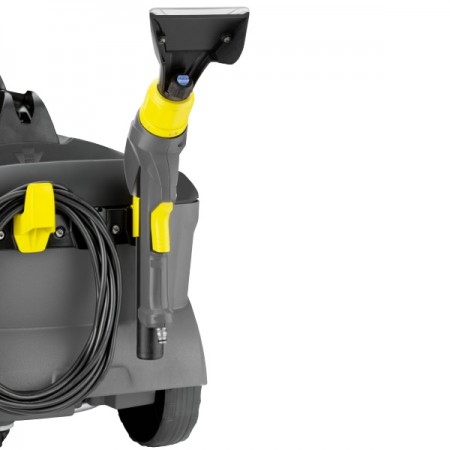

- Karcher Homebase System - Cable Hook
- Karcher Homebase System - Hand Tool Clip
Cleaning Specifications | |
Theoretical Area Performance | 20 - 25 Metres² / Hour |
Cleaning Width | 240 mm Floor Tool / 110 mm Upholstery Tool |
Pump Specifications | |
Spray Pressure | 1 Bar |
Spray Rate | 1 Litre / Minute |
Vacuum Specifications | |
Vacuum Suction Pressure | 254 mBar |
Vacuum Air Flow Rate | 74 Litres / Second |
Capacities | |
Solution Tank Capacity | 10 Litres |
Waste Water Capacity | 9 Litres |
Power Specifications | |
Powered By | 240 Volt Mains |
Power Rating | 1200 Watts |
Cable Length | 7.5 Metres |
- Availability:
- Weight: 16.10kg
- Dimensions: 794.00mm x 399.00mm x 473.00mm
- Part No.: 1.100-132.0
- Barcode: 4039784917101
