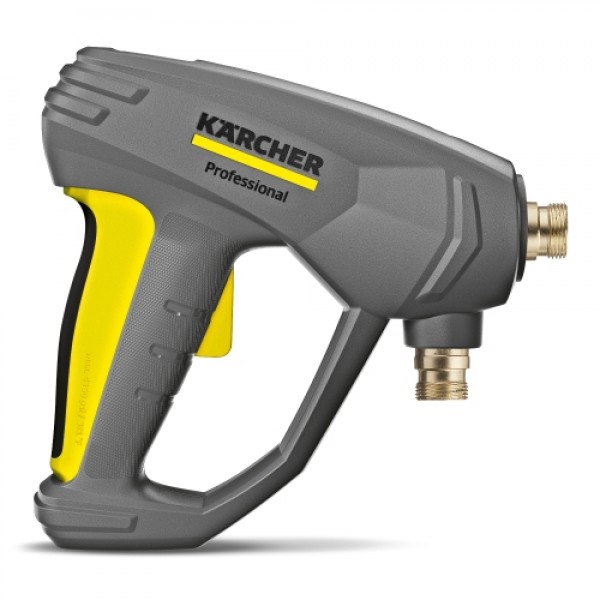

Karcher TR22-TR22 EASY!Force EX High Pressure Gun | 4.118-020.0

Specialist Earthed EASY!Force Trigger Gun for Hazardous & Explosive-Risk Industrial Cleaning

• HD 10/16-4 Cage Ex compatibility – Designed specifically for use with the Kärcher HD 10/16-4 Cage Ex pressure washer.
• Hazardous-area design – Intended for high-pressure cleaning in hazardous and explosive-risk industrial zones.
• Machine earthing – Incorporates machine earthing to eliminate the risk of potential spark production.
• EASY!Force trigger – Uses high-pressure recoil force to reduce the hand effort required to hold the trigger open.
• TR22 EASY!Lock connections – Uses TR22 connections for the compatible EASY!Lock hose and accessory system.
• Reduced operator fatigue – EASY!Force technology supports more comfortable prolonged professional cleaning.

Why should I buy a Karcher TR22-TR22 EASY!Force EX High Pressure Gun?

This is the specialist EASY!Force trigger gun designed for the Kärcher HD 10/16-4 Cage Ex and its hazardous and explosive-risk operating environment. It combines the reduced holding force of EASY!Force technology with TR22 EASY!Lock connections and machine earthing to eliminate the risk of potential spark production. When replacing the gun on an HD 10/16-4 Cage Ex, retaining the correct specialist EX component is important rather than substituting a standard TR22 EASY!Force gun based on connection type alone.

Typical Applications

• Replacement trigger gun for the Kärcher HD 10/16-4 Cage Ex
• Professional high-pressure cleaning in hazardous industrial zones
• Pressure washing in explosive-risk working environments
• Specialist industrial plant and equipment cleaning
• Prolonged professional high-pressure cleaning operations
• Use as part of the compatible HD 10/16-4 Cage Ex cleaning system

Product Details

The Karcher TR22-TR22 EASY!Force EX High Pressure Gun (4.118-020.0) is a specialist professional trigger gun designed specifically for use with the Kärcher HD 10/16-4 Cage Ex Cold Water Pressure Washer in hazardous and explosive-risk industrial environments. It combines the ergonomic benefits of Kärcher EASY!Force trigger technology with TR22 EASY!Lock connections and the specialist provisions required for use with the HD 10/16-4 Cage Ex.

Although the gun carries the EASY!Force name, EASY!Force refers to Kärcher's trigger mechanism rather than its connections. Unlike a conventional pressure washer trigger that requires continuous hand force to keep it operated, EASY!Force uses the recoil force generated by the high-pressure water jet to help hold the trigger in the operating position. This significantly reduces the effort required from the operator and helps minimise hand fatigue during prolonged professional pressure washing.

The EX version provides the core functionality of the standard Karcher TR22-TR22 EASY!Force Advanced Gun (4.118-005.0) but is specifically designed for the HD 10/16-4 Cage Ex and operation in hazardous and explosive-risk industrial zones. The gun incorporates machine earthing to eliminate the risk of potential spark production, an essential consideration when high-pressure cleaning equipment is operated in these specialist environments.

Both connections are Kärcher TR22 EASY!Lock. The hose side connects to the compatible EASY!Lock high-pressure hose system, while the accessory side accepts compatible EASY!Lock spray lances and accessories specified for the HD 10/16-4 Cage Ex system. EASY!Lock combines the security and durability of a threaded connection with fast connection and disconnection.

Because this is a specialist EX trigger gun intended for hazardous and explosive-risk applications, it should not be treated as a general-purpose alternative to the standard EASY!Force Advanced gun simply because both products use TR22 EASY!Lock connections. The correct gun, hose, accessories and earthing provisions should be maintained as part of the complete HD 10/16-4 Cage Ex pressure washer system.
